FABRICATION & MACHINING SERVICES

ATD offers fabrication and machining services to all customers big and small. We have a variety of equipment that is traditionally used to manufacture our own equipment. However, due to the sporadic nature of the custom equipment industry, we frequently have open capacity that we fill with contract fabrication and machining. We would love the opportunity to quote your build to print projects. See our equipment list below.


ATD Production Equipment and Facilities List

CNC MACHINING:

  • (1) Okuma LB-15 CNC Chucking Turning Center. 9.84 Max turning dia, 19.69 Max Work Length, 15.75 Swing over saddle, 2 controlled axes

  • (1) Okuma MC-4 VAE CNC Vertical Mill 3 axis, 20 cutter index magazine, 40"x20" table

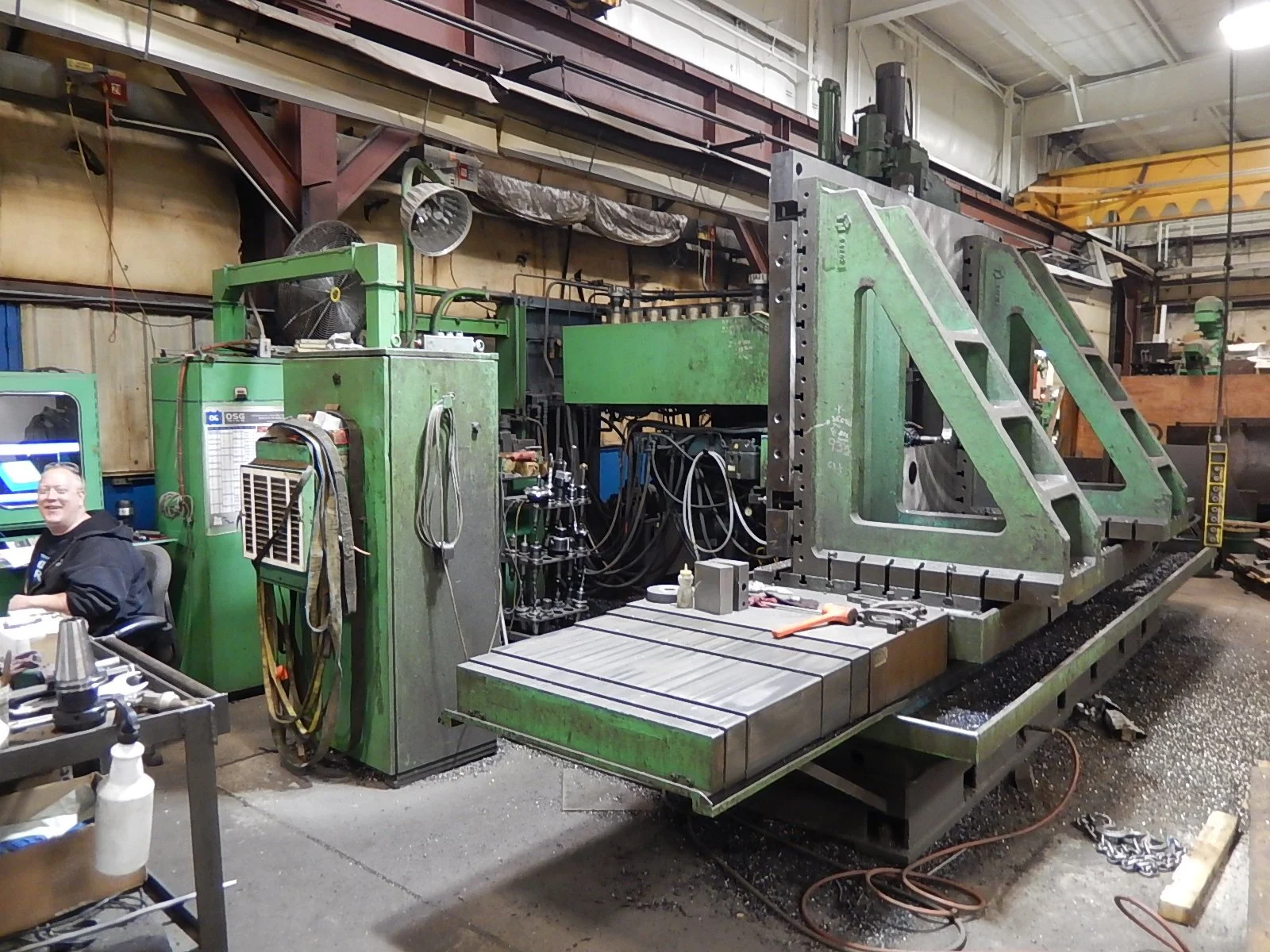

  • (1) G&L CNC Horizontal Boring Mill, 5" spindle, 51" travel, 2-axis head stock, Y=108" X=360" 16'x8' stationary table, 6'x6' 1 axis table 5' travel

  • (1) Pratt & Whittney CNC Horizontal Mill, 40"x100", 1 axis table, 20 cutter indexing Magazine

  • (1) Hurco BMC-50 CNC Vertical Mill, 3 axis, 20 cutter indexing magazine, 67"x27"Table

Conventional Machining:

Horizontal Boring Mills:

(1) G&L 4" dia Spindle, 84" vert x 130" hor.,60"x120" Table, 2 axis readouts, DeVlieg 50"x60" air-lift rotary table, G&L 90-degree head attachment

Milling Machines:

  • (8) Bridgeport Vertical Mills with read outs, rotary slide tables, Dividing heads and vices

  • (2) Cincinnati #3 Verical Mills

  • (1) Bridgeport with Prototrack Control

Grinders:

  • (1) Blanchard #42, 84" Dia magnetic chuck, 24" under wheel

  • (1) Blanchard #18, 30" Dia magnetic chuck, 12" under wheel

  • (1) DoALL Surface Grinder with Auto power feed, 10" wide x30" long magnetic chuck

  • (1) Brown and Sharp Surface Grinder. 7" wide x 18" long magnetic chuck

Lathes:

  • (1) 76" Clausing, 21" Dia x 80" between centers, 3 and 4 jaw chucks with collets and tapper

  • (1) 80" LeBlond, 28" swing, 3 and 4 jaw chucks

Saws:

  • (1) Hyd-Mech V-18 Vertical Band saw 45 deg tilt head

  • (1) DoALL Model #C-912M Horiz Band Saw

  • (1) DoALL Model 3612-3 Vert Band Saw

  • (1) DoALL Portable Band Saw

Quality Control:

  • (2) 24"x36" Granite surface plates

  • (1) 48"x96" Steel inpection table

  • (1) Mitutoyo Digital Height gage, 0-24"

  • (1) Vernier Calipers, 0-62"

  • (2) Vernier Caliper, 0-40"

  • (1) Micrometer, 0-24"

  • (2) Pi tapes, t0 80"

  • (1) ID Micrometer to 40"

  • (2) Bore Gages ½'-5"

  • (2) Gage block sets

  • (1) Wilson Rockwell Hardness Tester

  • (1) Magnaflux Testing Equipment

  • (1) Portable Hardness Tester

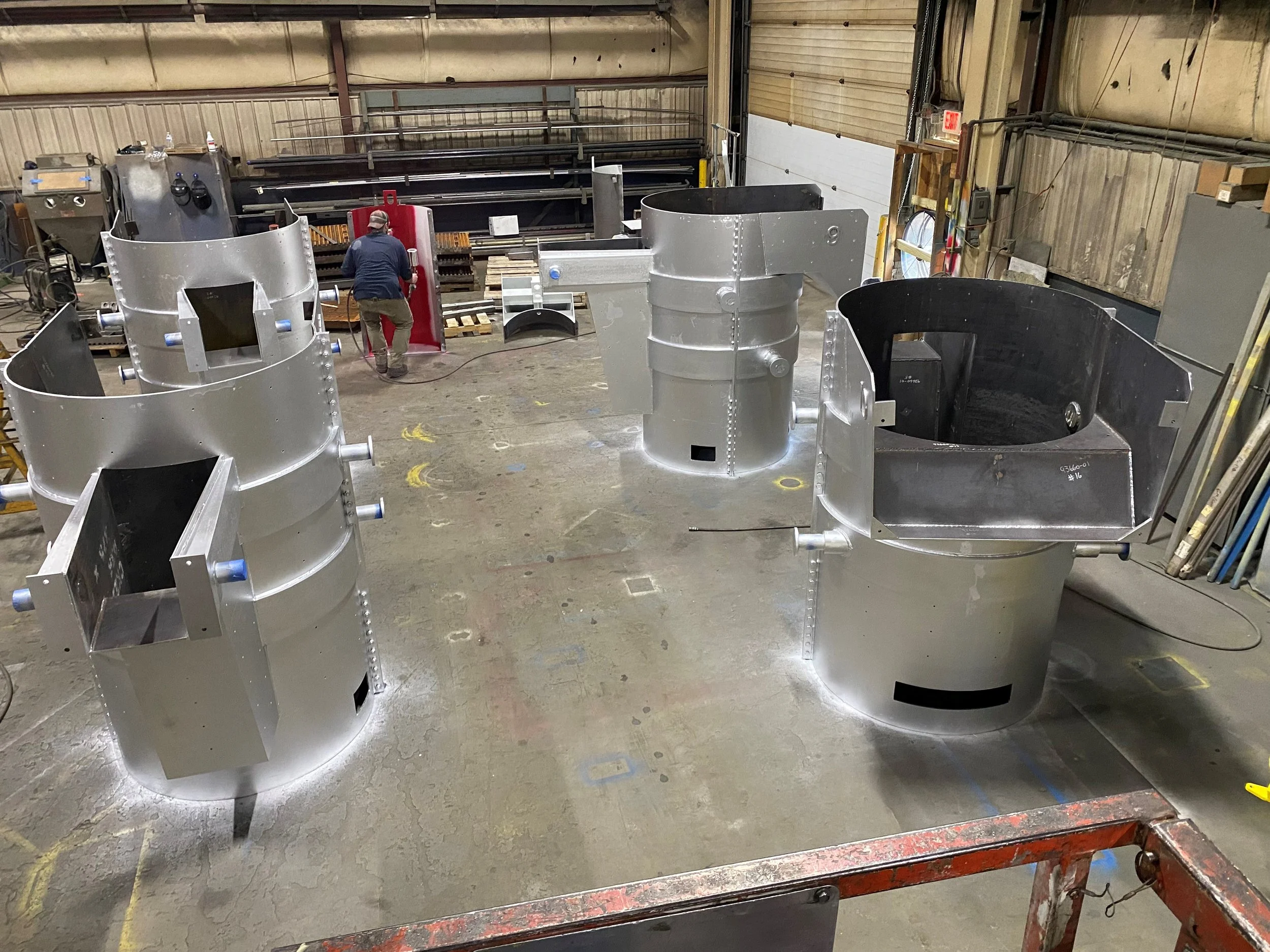

Fabrication:

  • (1) CSI CNC Plasma table with Burny Phantom, 8'x10' upto ½" thick material cut

  • (1) Thermal Arc Pac 45. Plasma torch

  • (1) Hypotherm Portable Plasma touch

  • (1) Hobart MEGA-MIG with Fanuc Arcmate 120i Programmable Robotic Welder

  • (2) Miller 450 MIG welders

  • (2) Miller Goldstar 500SS AC/DC

  • (1) Miller Weld, Automatic wire feed, Aluminum wire feeding attachment, 300 Amps

  • (2) Miller Delta Weld 651 Welders. 500 Amp

  • (1) Miller Syncrowave TIG Welder 350

  • (1) Hobart Welders, Auto Wire Feed, 200-500 Amps

  • (1) Trump Beveling machine

  • (1) Buffalo #2 ½"  Iron Worker

  • (1) Cincinnati Shear, Cao to ½" thickness x 14' long

  • (8) Hand torch sets

  • (3) Arc- Air Attachments

Assembly:

  • (1) Power Team 55 Ton Hydraulic Press

  • (1) TRW Nelson Series 5000 Model100 Stud Welder

  • (1) Sandblast Building with 30 Ton Sand Silo, 300 HP Inersoll-Rand Air compressor

  • (1) Sandblasting Machine

  • (1) Electrical Department Complete with Programming Equipment for Most PLC Controllers

  • (1) Brady Software (Laser Jet Tag Printing)

  • (1) Greenlee Hydraulic knockout

  • (2) Greenlee Hand Knockout

  • (1) Greenlee 440 Portathread

  • (1) NATO Revolving Field AC Generator

  • (1) Paint Booth area with Graco Painting System

  • (1) Industrial Power Washer

  • (1) Safety Kleen Parts Washer

  • (1) Greenlee 1885 Hydraulic Bender

  • (1) Greenlee Mechanical Bender

  • (1) Dake Arbor Press

  • (1) 5, 10, 100 Ton Portapower

  • (3) Ridgid Pipe threaders

  • (1) Fitting Crib

  • (1) Suburban Bolt -Weekly Crib Scan Automated Inventory replinishment Management System

  • (1) IWEN Tool Supply- ICRIB Tool management Automated Replinshment System
